TONE AI4200 Air-Impact Wrench (Short Type) Drive Angle 0.5 inches (12.7 mm) (1/2") Red 700Nm
4.9 (97 items)
Limited Time Sale$117.38 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216515430 | Release Date | 2026/04/19 | List Price | $78.26 | Model Number | 216515430 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Ultra-small (short) body (total length 4.3 inches (108 mm)), realizes high power (maximum torque: 700 Nm). The left rotation is set to a large output for maximum torque and efficient loosening work. Compact design that can fit in narrow places that you have never had before. Output adjustment dial, [F] Positive (right) rotation can be adjusted to 3 levels, left rotation is not adjustable but can be adjusted with the pull of the switch. Although the main unit is small, it achieves high power thanks to the big hammer mechanism which has increased impact power for one time. Rotational direction switching lever, designed for one-handed operation, and can be changed to allow for both left and right hand operation. Includes hanging hardware to support work Easy grip shape and non-slip surface
- Dimensions: Body length 4.3 inches (108 mm) x width 2.4 inches (60 mm) x height 6.8 inches (172 mm); Weight: 3.9 lbs (1.3 kg); *The weight does not include sockets and plu
- Output angle: 0.5 inches (12.7 mm) (with pin holes); Maximum normal torque (N・m): Right rotation 24.0 inches (610 mm), left rotation 27.6 inches (700 mm)
- No-load rotational speed (rpm): 10,000 (p.m): 0.62 (0.62 MPa)
- Maximum air consumption: (ntp) 845/(op) 127 (*(ntp) indicates the amount of air consumption converted to the standard state (0 °C, 1 atm = 0.1 MPa). (op) indicates the amount of air consumption at 20 degrees Celsius and 0.62 MPa in the actual operation state
- Air Inlet: Rc1/4 (PT1/4) Air Hose Inner Diameter: 0.4 inches (10 mm) or above (for reference only) Compatible Bolt: M20 *Compatible bolts are assumed to wheel nuts for automobiles
- Accessories: Plug R1/4 (PT1/4) x 1, instruction manual x 1, hanging tool x 1

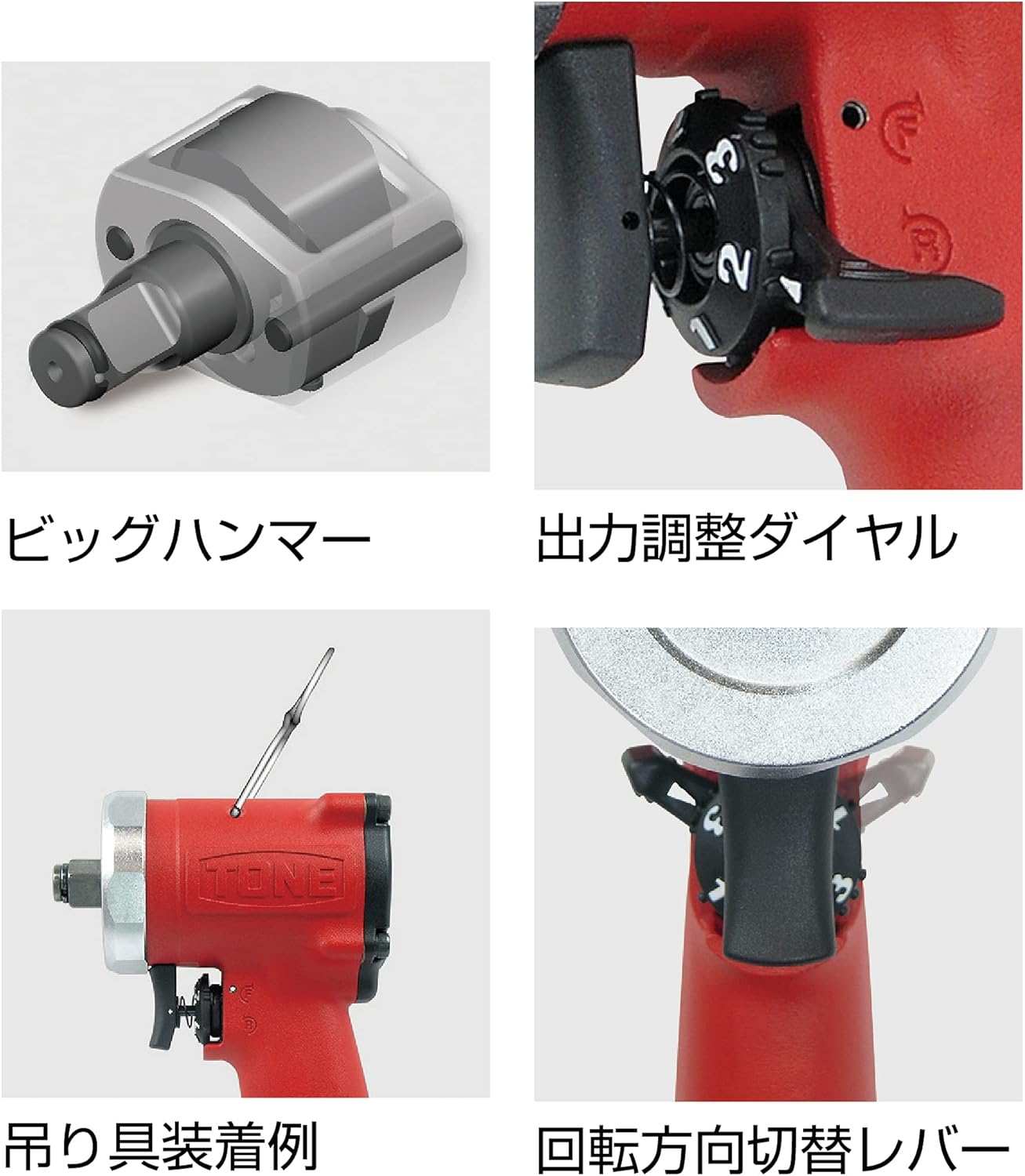

- Output adjustment dial, big hammer mechanism, turn direction lever
- Note: Please use a compressor with an air tank. We recommend that the compressor output is 0.75kW (1PS) or above
- Material: Body: Aluminum alloy body
| Color | Grey|red|black |
|---|---|
| Voltage | 12 Volts |
| Brand Name | TONE |
| Head Style | フィックススクエア |
| Unit Count | 1.00 Count |
| Item Length | 17.2 Centimeters |
| Item Torque | 700 Newton Meters |
| Item Weight | 1.3 Kilograms |
| Finish Types | Painted |
| Manufacturer | トネ(TONE) |
| Model Number | AI4200 |
| Material Type | Aluminum |
| Item Type Name | Air-Impact Wrench |
| Package Quantity | 1 |
| Included Components | No |
